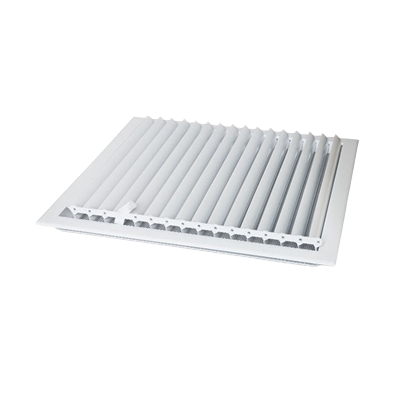

EPB-U Bathroom Louver

APPLICATION AREAS
Used as a transfer air grille in bathrooms and WCs. An aluminum wire mesh is installed on the rear side of the grille to prevent insects from entering. It can also be used as a general transfer air grille. The blades can be opened and closed by moving them up and down via the side control lever.

IMPORTANT NOTE
Depending on the installation method, the specified dimensions are given as (L × H), where L = width and H = height. As standard, the grille is manufactured 10 mm smaller for duct mounting. If specified, production can be carried out according to net dimensions.

FEATURES
The grilles are manufactured using specially rolled aluminum profiles. After applying special filler to the joints between the grille and the outer frame and sanding the surface, they are chemically cleaned and coated with electrostatic powder paint.

INSTALLATION MATERIALS, PACKAGING & TRANSPORTATION
Mounting screws are supplied with the grilles. Packaging is carried out using polyethylene film. Since the grilles are fragile and may deform, transportation must be handled with care.

SAMPLE ORDER FORMAT
For this type of grille (wall-mounted), the first dimension written, 500 mm, refers to the horizontal size (blade length), and the second dimension, 250 mm, refers to the vertical size.
EPB-U 500 × 250 – 1 PC

The standard paint color is RAL 9010. Painting in all RAL colors is available upon request.
