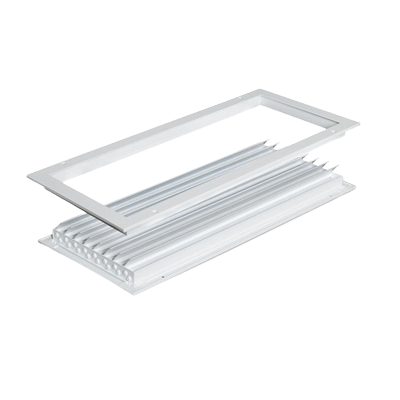

EMK-U Door Transfer Grille

APPLICATION AREAS
Used as a transfer air grille in ventilation systems. The blades and their angles are fixed and cannot be adjusted. They are mounted on doors or walls to allow free air transfer from inside to outside or from outside to inside in both positive and negative pressure systems.

IMPORTANT NOTE
Depending on the installation method, the specified dimensions are given as (L × H), where L = width and H = height. As standard, the grille is manufactured 10 mm smaller for duct mounting. If specified, production can be carried out according to net dimensions.

FEATURES
The grilles are manufactured using specially rolled aluminum profiles. The joint areas between the grille and the outer frame are filled with special compound, sanded, chemically cleaned, and then coated with electrostatic powder paint. Production in any size is available upon request.

INSTALLATION MATERIALS, PACKAGING & TRANSPORTATION
Mounting screws are supplied with the grilles. Packaging is done using polyethylene film. Since the grilles are fragile and may deform, transportation must be handled with care.

SAMPLE ORDER FORMAT
For this type of grille (wall-mounted), the first dimension written, 400 mm, refers to the horizontal dimension (blade length), and the second dimension, 200 mm, refers to the vertical dimension.
EMK-U 400 × 200 – 1 PC

The standard paint color is RAL 9010. Painting in all RAL colors is available upon request.
